A bathtub drain connects the tub outlet to the building waste pipe or to a controlled discharge hose.
In a permanent bathroom, the system may include a drain flange, rubber gasket, waste shoe, overflow pipe, trap, and plumbing connections. A portable bathtub normally uses a simpler integrated valve or hose fitting.
Incorrect installation can cause slow drainage, odors, water leakage, or hidden damage beneath the bathtub.
A standard built-in bathtub drain commonly includes:
| Component | Main Function |
|---|---|
| Drain flange | Visible fitting inside the tub |
| Rubber gasket | Seals between the tub and waste shoe |
| Waste shoe | Connects the drain opening to the waste pipe |
| Overflow assembly | Directs excess water into the drain |
| Trap | Blocks sewer gases from entering the room |
| Drain pipe | Carries wastewater away |
The exact components vary by tub model and local plumbing system.
Confirm that the drain kit matches the bathtub opening and plumbing standard.
Check:
Drain-hole diameter
Overflow position
Pipe size
Thread type
Tub thickness
Gasket arrangement
Access beneath the tub
Local plumbing requirements
A mismatch between the drain and tub may not become obvious until the system is filled with water.
Position the waste shoe beneath the drain opening.
Place the specified gasket between the waste shoe and the underside of the bathtub. The gasket should sit flat without folding or twisting.
Some drain systems require plumber’s putty beneath the upper flange, while others require silicone sealant or a dry gasket.
Follow the drain and bathtub instructions. Certain putties may stain or damage acrylic and plastic surfaces.

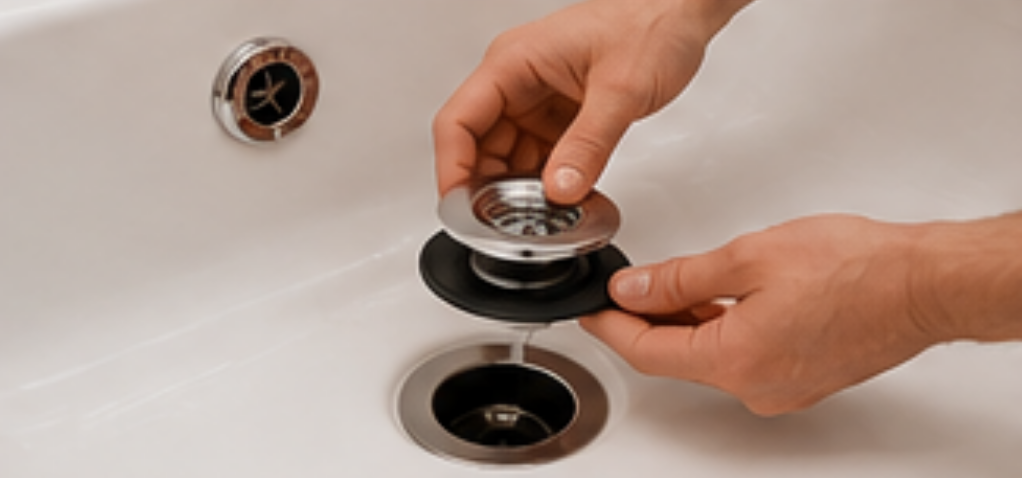

Insert the flange through the drain opening and thread it into the waste shoe.
Tighten it evenly while keeping the lower fitting aligned. Excessive force can crack plastic components, distort gaskets, or damage the tub surface.
Remove excess sealant after tightening.
Install the overflow gasket in the correct direction and attach the overflow plate.
Connect the overflow tube to the waste assembly. Confirm that the pipe is not under tension and that the joints remain accessible for inspection.
The bathtub drain must connect to a correctly sized trap and waste system.
Pipe slope, venting, connection methods, and approved materials depend on local plumbing regulations.
Professional installation is recommended when the waste pipe must be relocated, concealed, or connected inside a floor or wall.
Fill the bathtub with a small amount of water and inspect every joint.
Then fill it higher to test the overflow connection. Release the water and observe the drain under full flow.
Do not close the access panel or finish the surrounding wall until the complete assembly remains dry.
An Ice Bath Tub With Drain usually uses an integrated outlet near the bottom of the tub.
The outlet may connect to a cap, valve, short pipe, or flexible drain hose. It does not normally connect permanently to a building trap.
Place the tub on a flat, stable surface near a suitable drainage location.
Confirm that the hose can direct water away without creating a slipping hazard, flooding a room, or damaging landscaping.
Before adding water:
Confirm that the cap is tight.
Check the gasket position.
Inspect the hose connection.
Make sure the valve operates freely.
Look for cracks or loose fittings.
Testing with a small amount of water is easier than correcting a leak after the tub is full.
Our portable ice bath products include drainage structures intended to simplify emptying after use.
The tub can be folded or disassembled after it has been fully drained, cleaned, and dried. Some models can also be supplied with covers and customized accessories.
Our design and engineering teams can review drain location, valve structure, hose length, material thickness, insulation, capacity, color, and packaging.
Samples can be produced to verify setup, stability, leakage control, drainage speed, and storage method before bulk production.
Provide your required tub dimensions, water capacity, outlet diameter, valve type, hose requirement, lid, frame, logo, packaging, and order volume. We will prepare an Ice Bath Tub With Drain proposal for technical review.
